제품소개 > Pouch Laminator
|
|

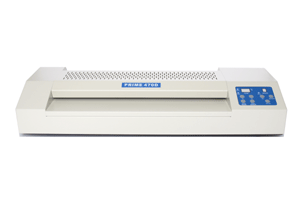

| 1. DIGITAL POUCH LAMINATOR P-330D(6 roll/4 roll) / P-470D(6 roll) |
|
|
|
|
|
| |
| 2. |
Highly durable thick silicon roller and metal case |
|
| 4. |
Forward and reverse switch, memory function.
Speed control is possible due to its DC motor.
Last working temperature and speed are memorized.
|
|
| 5. |
Current temperature check.
Safety control
* In case of control failure by PCB, heater is controlled by bimetal
|
|
| 6. |
Easy operation
* Alarm function(LED : Red is changed to Green)
when it is ready to work |
|
| 8. |
Roller diameter : 30mm/31mm |
|
| 9. |
Error display in case of over180℃ on FND |
|
| 2. |
Roller 와 금속케이스의 높은 내구성
|
|
| 4. |
메모리 기능, 모터 정, 역방향 선택 가능
|
|
| 6. |
예열 완료 시 알람(LED 적색에서 녹색으로 전환)
|
|
| 7. |
편리한 작동법, 편리한 Roller 청소
|
|
| 9. |
FND상 180℃ 이상 올라가면, Err 표기 |
|
|
|
|
|
| |
| |
▣ SPECIFICATIONS
| CLASSFICATION |
P-330D |
P-470D |
| DIMENSION (mm) |
535X270X135 |
665X270X135 |
| WORKING WIDTH (mm) |
330 |
470 |
| LAMINATING THICKNESS (max mic) |
250 |
250 |
| LAMINATING SPEED (m/min) |
2 |
2 |
| POWER (AC V) |
220-240 |
220-240 |
| POWER CONSUMPTION (W) |
1400, 700 |
1400 |
| WEIGHT (kg) |
15 |
20 |
|
|
| |
| 2. DIGITAL POUCH LAMINATOR P-330H4/ P-330H6 |
|
|
|
|
|
| |
| 2. |
Highly durable thick silicon roller and metal case |
|
| 4. |
Forward and reverse switch, memory function.
Speed is fixed due to its AC motor.
Last working temperature and speed are memorized. |
|
| 5. |
Current temperature check.
Safety control.
* In case of control failure by PCB,heater is controlled by bimetal. |
|
| 6. |
Easy operation
* Alarm function(LED : Red is changed to Green) when it is ready to work |
|
| 8. |
Roller diameter : 24mm/24.5mm
|
|
| 9. |
Error display in case of over180℃ on FND |
|
| 3. |
메모리 기능, 모터 정, 역방향 선택 가능
|
|
| 5. |
예열 완료 시 알람(LED 적색에서 녹색으로 전환)
|
|
| 6. |
편리한 작동법, 편리한 Roller 청소
|
|
|
|
 |
|
| |
| |
▣ SPECIFICATIONS
| CLASSFICATION |
P-330H4 |
P-330H6 |
| DIMENSION (mm) |
535X270X135 |
535X270X135 |
| WORKING WIDTH (mm) |
330 |
330 |
| LAMINATING THICKNESS (max mic) |
250 |
250 |
| LAMINATING SPEED (m/min) |
1 |
1 |
| POWER (AC V) |
220-240 |
220-240 |
| POWER CONSUMPTION (W) |
700 |
1200 |
| WEIGHT (kg) |
12 |
13 |
|
|
| |
| |
|
|
| |
|
|
|
| |
| |
|
|
 |
| |
 |
 |
|
|
 |
|
|
|
